Vortex Crossfire II 4-12x40 AO Riflescope, Dead-Hold BDC Reticle with Sunshade
Product Description
Description: Vortex Crossfire II 4-12x40 AO Riflescope, Dead-Hold BDC Reticle with Sunshade. This 4-12x power scope with a 40mm objective lens utilizes a 1-inch tube constructed from a solid block of aircraft grade aluminum and features a highly durable hard-anodized black matte finish. This rifle scope features a second focal plane reticle and adjustable objective. With long eye relief, a fast-focus eyepiece, fully multi-coated lenses and resettable MOA turrets, there's no compromising on the Crossfire II. The hard anodized single-piece aircraft-grade aluminum tube is nitrogen purged and o-ring sealed for waterproof and fogproof performance.
This scope comes with the following:
- Sunshade
- Removable lens covers
- Lens cloth
SPECIFICATIONS | CROSSFIRE II 4-12X40 AO DIMENSIONS | ||||||||
Magnification | 4-12x | ||||||||
Objective Lens Diameter | 40mm | ||||||||
Eye Relief | 3.9" | ||||||||
Field of View | 24.7-8.4 ft/100 yards | ||||||||
Tube Size | 1" | ||||||||
Turret Style | Capped | ||||||||
Adjustment Graduation | 1/4 MOA | ||||||||
Travel per Rotation | 15 MOA | ||||||||
Max Elevation Adjustment | 50 MOA | ||||||||
Max Windage Adjustment | 50 MOA | LENGTHS | HEIGHTS | ||||||
Parallax Setting | 10 yards to infinity | L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
Length | 13.6" | 13.6 | 2.2 | 1.9 | 5.3 | 4.7 | 3.6 | 2.05 | 1.71 |
Weight | 19.2oz. | Dimensions measured in inches. |

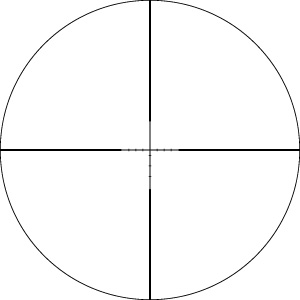

DEAD-HOLD BDC RETICLE | |
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern. |
OPTICAL FEATURES:
- Fully Multi-Coated - Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
CONSTRUCTION FEATURES
- Tube Size - 1" diameter
- Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof - Rugged construction withstands recoil and impact.
- Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position.
- Capped Reset Turrets - Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.
- Adjustable Objective - Adjustment for riflescope's objective lens provides image focus and parallax removal.
CONVENIENCE FEATURES
- Fast Focus Eyepiece - Allows quick and easy reticle focusing.
Manufacturer: Vortex
PRODUCT SPECIFICATIONS:
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 4-12x
- Optics Objective Size: 40mm
- Scope Tube Diameter: 1"
- Sight Style: Scope
Specifications
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 4-12x
- Optics Objective Size: 40mm
- Scope Tube Diameter: 1"
- Sight Style: Scope
