Vortex Diamondback Tactical 4-12x40 Riflescope, VMR-1 MOA Reticle
Product Description
Description: Vortex Diamondback Tactical 4-12x40 Riflescope, VMR-1 MOA Reticle. This 4-12x power scope with a 40mm objective lens utilizes a 1-inch tube constructed from a solid block of aircraft grade aluminum and features a highly durable hard-anodized black matte finish. This tactical rifle scope features a second focal plane reticle and fast-focus eyepiece. XD extra-low dispersion glass increases resolution and color fidelity while XR fully multi-coated lenses maximize every minute of shooting light. Exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.
This scope comes with the following:
- Lens Covers
- Lens Cloth
- Tools
SPECIFICATIONS | DIAMONDBACK TACTICAL 4-12X40 DIMENSIONS | ||||||||
Magnification | 4-12x | ||||||||
Objective Lens Diameter | 40mm | ||||||||
Eye Relief | 3.9" | ||||||||
Field of View | 23.6-7.9 ft/100 yards | ||||||||
Tube Size | 1" | ||||||||
Turret Style | Tactical | ||||||||
Adjustment Graduation | 1/4 MOA | ||||||||
Travel per Rotation | 12 MOA | ||||||||
Max Elevation Adjustment | 70 MOA | ||||||||
Max Windage Adjustment | 70 MOA | LENGTHS | HEIGHTS | ||||||
Parallax Setting | 100 yards | L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
Length | 14.2" | 14.2 | 1.9 | 2.1 | 5.3 | 5.3 | 3.6 | 1.86 | 1.58 |
Weight | 16.2oz. | Dimensions measured in inches. |

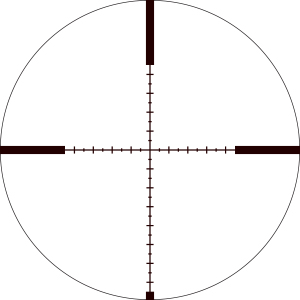

VMR-1 RETICLE (MOA) | |
Designed to maximize long distance shooting and ranging abilities, the VMR-1 MOA reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads. |
OPTICAL FEATURES:
- XD™ Lens Elements - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
- XR™ Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
CONSTRUCTION FEATURES
- Tube Size - 1" diameter
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof - Rugged construction withstands recoil and impact.
- Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position.
- Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
- Exposed Tactical Turrets - The Diamondback Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick.
INTERNAL MECHANISM DESIGN FEATURES
- Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
CONVENIENCE FEATURES
- Fast Focus Eyepiece - Allows quick and easy reticle focusing.
- Fiber Optic Radius Bar - The patented fiber optic Radius Bar visually assists tracking turret rotations.
- Magnification Rib - The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
Manufacturer: Vortex
PRODUCT SPECIFICATIONS:
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 3-9x
- Optics Objective Size: 40mm
- Scope Tube Diameter: 1"
- Sight Style: Scope
Specifications
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 4-12x
- Optics Objective Size: 40mm
- Scope Tube Diameter: 1"
- Sight Style: Scope
