Vortex Diamondback Tactical 4-16x44 FFP Riflescope, EBR-2C MRAD Reticle
Product Description
Description: Vortex Diamondback Tactical 4-16x44 FFP Riflescope, EBR-2C MRAD Reticle. This 4-16x power scope with a 44mm objective lens utilizes a 30mm tube constructed from a solid block of aircraft grade aluminum and features a highly durable hard-anodized black matte finish. This tactical rifle scope features a first focal plane, glass-etched reticle and a side adjustable parallax. XD extra-low dispersion glass increases resolution and color fidelity while fully multi-coated lenses increase light transmission for greater clarity in low light settings. Exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges.
This scope comes with the following:
- Lens Covers
- Lens Cloth
- Sunshade
SPECIFICATIONS | DIAMONDBACK TACTICAL 4-16X44 FFP DIMENSIONS | ||||||||
Magnification | 4-16x | ||||||||
Objective Lens Diameter | 44mm | ||||||||
Eye Relief | 3.8" | ||||||||
Field of View | 26.9-6.7 ft/100 yards | ||||||||
Tube Size | 30mm | ||||||||
Turret Style | Tall Exposed Tactical | ||||||||
Adjustment Graduation | 0.1 MRAD | ||||||||
Travel per Rotation | 6 MRAD | ||||||||
Max Elevation Adjustment | 25 MRAD | ||||||||
Max Windage Adjustment | 25 MRAD | LENGTHS | HEIGHTS | ||||||
Parallax Setting | 20 yards to infinity | L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
Length | 14" | 14 | 2.25 | 2.7 | 6.5 | 3.83 | 3.75 | 2.01 | 1.73 |
Weight | 23.1oz. | Dimensions measured in inches. |

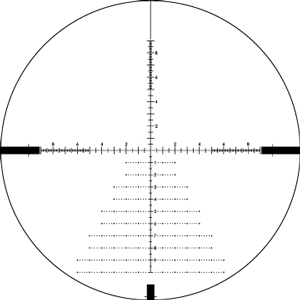

EBR-2C RETICLE (MRAD) | |
Hash-marked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections. |
OPTICAL FEATURES:
- XD Lens Elements - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
- Fully Multi-Coated - Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
- First Focal Plane Reticle - Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
- Glass-Etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
CONSTRUCTION FEATURES
- Tube Size - 30 mm diameter provides maximized internal adjustment and strength.
- Nitrogen Gas Purged - Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions.
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof - Rugged construction withstands recoil and impact.
- Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position.
- Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
- Exposed Tactical Turrets - The Diamondback Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick.
INTERNAL MECHANISM DESIGN FEATURES
- Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
- Precision-Force Spring System - Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
CONVENIENCE FEATURES
- Fast Focus Eyepiece - Allows quick and easy reticle focusing.
- Magnification Rib - The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
Manufacturer: Vortex
PRODUCT SPECIFICATIONS:
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 4-16x
- Optics Objective Size: 44mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
Specifications
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 4-16x
- Optics Objective Size: 44mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
