Holosun HM3X Aluminum Bodied 3x Flip Magnifier
Product Description
Description: Holosun HM3X Aluminum Bodied 3x Flip Magnifier. Manufactured from black coated precision CNC milled aluminum, this Holosun HM3X Bodied 3x Flip Magnifier provides outstanding specification and clarity for your rifle. This magnifier showcases a flip to the side designed mount with an Absolute and Lower 1/3 Co-witness, a 2.75" eye relief, 33mm scope diameter, IP67 certified water resistance via a nitrogen purged process and includes windage and elevation adjustment for precision zeroing. This monocular equipment can be combined with any HOLOSUN dot sight and is suitable for aiming and observing targets at a distance of 600M or more. It can also be used as a hand-held monocular device. Included in the box is a manual, QD release mount and T10 L key.
Features:
|
TECH:
OPTICAL SPECIFICATIONS |
Magnification | 3x |
Exit Pupil | 299in. (7.6mm) | |
Eye Relief | 2.75in. (70mm) | |
Field of View | 37' at 100 yards | |
Diopter | +3Dioptres | |
Transmittance | 75% | |
Lens Material | Optical Glass | |
ENVIRONMENTAL AND DURABILITY SPECIFICATIONS |
Storage Temperature | -40C ~ 70C |
Operating Temperature | -30C ~ 60C | |
Humidity | 95% | |
Waterproof | IP67 (1M Water depth/30min) | |
Nitrogen (concentration) | 99.99% | |
Impact and Shock Resistance | 1000G deviation <2MOA | |
MECHANICAL SPECIFICATIONS |
Housing Material | Aluminum |

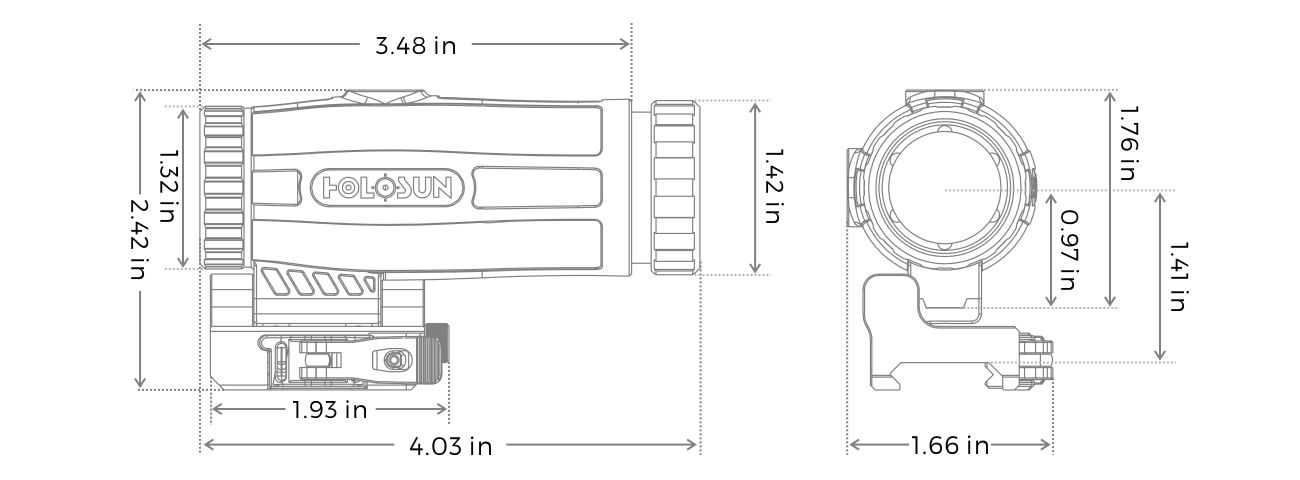

Dimensions (mm) | 102x43x67(LxWxH) | |
Weight oz. (g) | 9.5 oz. (280g) | |
Installation | Suitable for Picatinny/STANAG rails |
Manufacturer: Holosun
PRODUCT SPECIFICATIONS:
- Brand: Holosun
- Finish / Color: Black
- Optics Magnification: 3x
- Material: Aluminum
- Scope Tube Diameter: 33mm
Specifications
- Brand: Holosun
- Finish / Color: Black
- Material: Aluminum
- Optics Magnification: 3x
- Scope Tube Diameter: 33mm
