Vortex Razor Gen II HD-E 1-6x24 Riflescope, VMR-2 MOA Reticle

Description: Vortex Razor Gen II HD-E 1-6x24 Riflescope, VMR-2 MOA Reticle. This 1-6x power scope with a 24mm objective lens utilizes a 30mm tube constructed form a solid block of aircraft grade aluminum and features the highly durable hard anodized Stealth Shadow finish. This rifle scope features an apochromatic objective lens system, optically indexed lenses, HD lens elements, a second focal plane reticle and versatile daylight bright illuminated center dot. The Gen II-E 1-6 is a top-tier optical solution for short to medium range tactical applications and is perfect for the AR platform. An ultra-forgiving eyebox with generous eye relief generates a heads-up-display-like sight picture for optimal monitoring of the surrounding environment and fast target acquisition.

This scope comes with the following:

• CR2032 battery
• Lens cloth

SPECIFICATIONS		RAZOR HD GEN II 1-6X24 DIMENSIONS
Magnification	1-6x
Objective Lens Diameter	24mm
Eye Relief	4"
Field of View	115.2-20.5 ft/100 yards
Tube Size	30mm
Turret Style	Low Capped
Adjustment Graduation	1/2 MOA
Travel per Rotation	50 MOA
Max Elevation Adjustment	150 MOA
Max Windage Adjustment	150 MOA	LENGTHS						HEIGHTS
Parallax Setting	100 yards	L1	L2	L3	L4	L5	L6	H1	H2
Length	10.1"	10.1	2.8	1.5	5.9	0.6	3.6	1.29	1.81
Weight	21.5 oz.	Dimensions measured in inches.

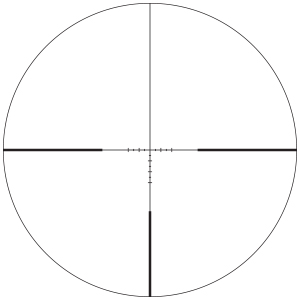

	VMR-2 RETICLE (MOA)
	The VMR-2 is a hashmarked ranging reticle with an illuminated center dot that uses MOA-based subtension lines for ranging, holdover and windage corrections.

 OPTICAL FEATURES:

• APO System - Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.
• Optically Indexed Lenses - Optimize image sharpness and brightness from edge to edge.
• HD Lens Elements - Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.
• XR Plus Fully Multi-Coated - Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
• Plasma Tech - Cutting edge application process provides unparalleled coating durability and performance.
• Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
• Illuminated Center Dot - Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.
• Locking Illumination - Locks illumination at preferred setting.

CONSTRUCTION FEATURES

• Tube Size - 30 mm diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
• Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
• Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
• Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
• Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
• Shockproof - Rugged construction withstands recoil and impact.
• Hard Anodized Stealth Shadow Finish - Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
• ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
• Large Diameter Turrets - Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.

INTERNAL MECHANISM DESIGN FEATURES

• Friction Reduction System - Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.

• Turret Screws - Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.
• Erector Tube System - Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.

CONVENIENCE FEATURES

• Fast Focus Eyepiece - Allows quick and easy reticle focusing.
• Locking Side Illumination - Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Manufacturer: Vortex

PRODUCT SPECIFICATIONS:

• Brand: Vortex Optics
• Finish / Color: Black
• Firearm Type: Rifle
• Material: Aluminum
• Optics Magnification: 1-6x
• Optics Objective Size: 24mm
• Scope Tube Diameter: 30mm
• Sight Style: Scope
