Vortex Strike Eagle 1-6x24 Riflescope, AR-BDC3 (MOA) Reticle
Product Description
Description: Vortex Strike Eagle 1-6x24 Riflescope, AR-BDC3 (MOA) Reticle. This 1-6x power scope with a 24mm objective lens utilizes a 30mm tube constructed from a solid block of aircraft grade aluminum and features a highly durable hard-anodized black matte finish. This rifle scope allows for the operator to rapidly engage targets near and far while providing holdover with ranging references from 0-600 yards. This scope features an illuminated reticle, full multi-coated proprietary coatings to increase light transmission with multiple anti-reflective coatings, a second focal plane reticle with an ArmorTek coating that provides ultra-hard and scratch-resistant protection from scratches, oil and dirt.
This scope comes with the following:
- CR2032 battery
- Thread-in throw lever
- Lens cloth
- Flip caps
SPECIFICATIONS | STRIKE EAGLE 1-6x24 DIMENSIONS | ||||||||
Magnification | 1-6x | ||||||||
Objective Lens Diameter | 24mm | ||||||||
Eye Relief | 3.5" | ||||||||
Field of View | 116.5-19.2ft/100yds | ||||||||
Tube Size | 30mm | ||||||||
Turret Style | Low Capped | ||||||||
Adjustment Graduation | 1/2 MOA | ||||||||
Travel per Rotation | 44 MOA | ||||||||
Max Elevation Adjustment | 140 MOA | ||||||||
Max Windage Adjustment | 140 MOA | LENGTHS | HEIGHTS | ||||||

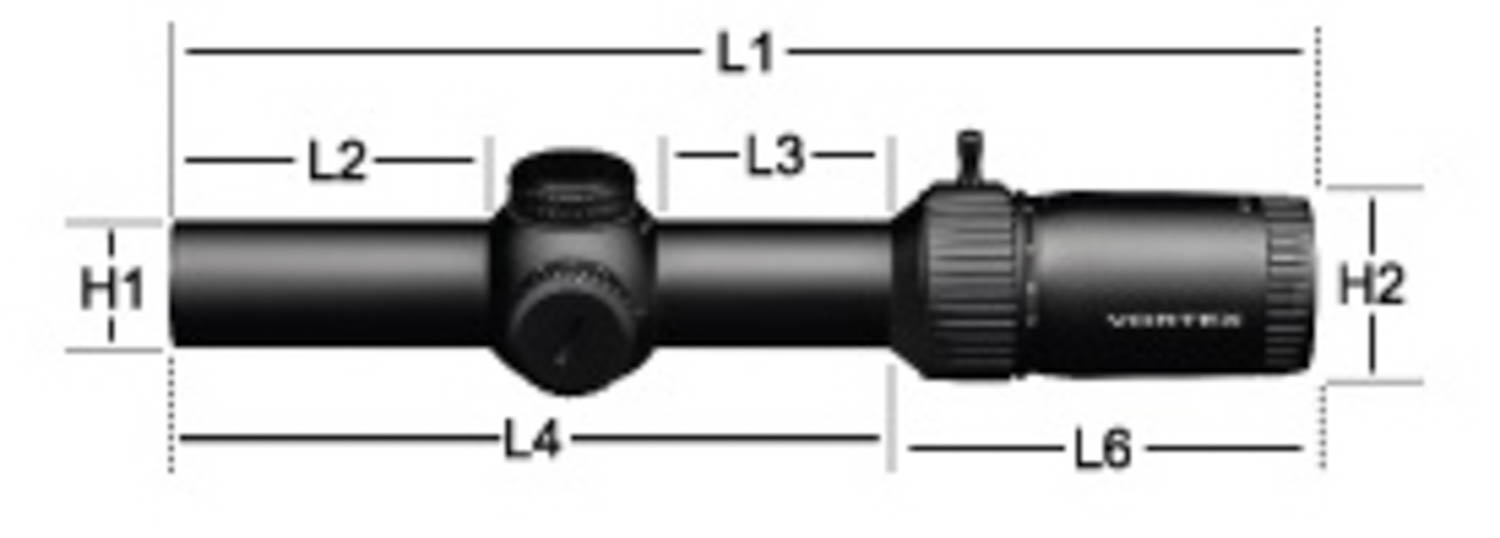

Parallax Setting | Fixed @100yds | L1 | L2 | L3 | L4 | L5 | H1 | H2 | |
Length | 10.5" | 10.5 | 2.9 | 2.1 | 6.6 | 3.9 | 1.2 | 1.7 | |
Weight | 18.5oz. | Dimensions measured in inches. |
AR-BDC3 RETICLE The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 18 MOA horseshoe gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards. |
OPTICAL FEATURES:
- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Glass-Etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
- Illuminated Reticle - Provides precise aiming under low-light conditions.
CONSTRUCTION FEATURES
- Tube Size - 30 mm diameter
- Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof - Rugged construction withstands recoil and impact.
- Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position.
- ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
CONVENIENCE FEATURES
- Throw Lever - The included throw lever can be installed for quick and easy magnification adjustments.
- Fast Focus Eyepiece - Allows quick and easy reticle focusing.
Manufacturer: Vortex
PRODUCT SPECIFICATIONS:
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 1-6x
- Optics Objective Size: 24mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
Specifications
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 1-6x
- Optics Objective Size: 24mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
