Vortex Strike Eagle 1-8x24 Riflescope, AR-BDC3 (MOA) Reticle
Product Description
Description: Vortex Strike Eagle 1-8x24 Riflescope, AR-BDC3 (MOA) Reticle. This high-grade aircraft aluminum constructed Vortex Strike Eagle riflescope is perfect for pushing your favorite black rifles performance and works great for your next AR-15 build. This scope is loaded with features, including a magnification of 1-8x, 24mm tube size, fully multi-coated anti-reflective coating for increased light transmission for optimal clarity, shockproof, waterproof, fog-proof, and many more. The AR-BDC3 reticle will allow you to effectively determine ranges, holdovers, windage corrections, moving target leads, allow for fast target acquisition and showcase top performing shots with professional accuracy.
Optimize the versatility and quick-handling attributes of your AR with the redesigned Strike Eagle. A true 1x on the low end, Strike Eagle zooms to let shooters rapidly engage targets near and far, and an AR-BDC3 reticle aids in rapid shooting while providing holdover and ranging references from 0-600 yards. Plus, with a thread-in throw lever, you'll be on target even faster, shot after shot.
Included in the box:
- Thread-in throw lever
- Flip caps
- Lens cloth
- CR2032 Battery
SPECIFICATIONS | STRIKE EAGLE 1-8x24 DIMENSIONS | ||||||||
Magnification | 1-8x | ||||||||
Objective Lens Diameter | 24mm | ||||||||
Eye Relief | 3.5" | ||||||||
Field of View | 109-14.4 ft/100 yards | ||||||||
Tube Size | 30mm | ||||||||
Turret Style | Low Capped | ||||||||
Adjustment Graduation | .50 MOA | ||||||||
Travel per Rotation | 44 MOA | ||||||||
Max Elevation Adjustment | 140 MOA | ||||||||
Max Windage Adjustment | 140 MOA | LENGTHS | HEIGHTS | ||||||

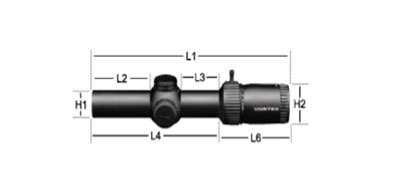

Parallax Setting | Fixed @100 yds | L1 | L2 | L3 | L4 | L6 | H1 | H2 | |
Length | 10" | 10.0 | 2.8 | 1.8 | 6.4 | 3.5 | 1.2 | 1.7 | |
Weight | 17.6 oz. | Dimensions measured in inches. |
OPTICAL FEATURES:
- Illuminated Reticle - Provides precise aiming under low-light conditions
- Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces
- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Glass-Etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
AR-BDC3 RETICLE:
- The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 18 MOA horseshoe gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.
CONSTRUCTION FEATURES
- ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Shockproof - Rugged construction withstands recoil and impact.
- Waterproof-IPX7 - Designed to meet IPX7 waterproofing standards
- Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Tube Size - 34 mm diameter provides maximized internal adjustment and strength.
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
CONVENIENCE FEATURES
- Fast Focus Eyepiece - Allows quick and easy reticle focusing.
- Throw Lever - The included throw lever can be installed for quick and easy magnification adjustments.
Manufacturer: Vortex
PRODUCT SPECIFICATIONS:
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 1-8x
- Optics Objective Size: 24mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
Specifications
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 1-8x
- Optics Objective Size: 24mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
