Vortex Spitfire 3x Prism Scope, EBR-556B (MOA) Reticle
Product Description
Description: Vortex Spitfire 3x Prism Scope, EBR-556B (MOA) Reticle. This 3x power prism scope lens features a highly durable hard-anodized black matte finish, multiple anti-reflective coatings, and a multi-height mount system. The EBR-556B reticle is etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions. The sophisticated prism-based design allows for a more compact optical system without sacrificing optical quality.
Designed specifically for the AR platform, the 3x Spitfire combines an impressive array of high-performance features into a rugged, ultra-compact package. Prism Scopes are not compatible with the VMX-3T Magnifier.
This prism scope comes with the following:
- (2) Picatinny Rails
- T-15 Torx Wrench
- 2mm Hex Wrench
- CR2032 battery
- Flip Caps
SPECIFICATIONS | SPITFIRE 3X DIMENSIONS | |
Magnification | 3x | |
Eye Relief | 2.8" | |
Field of View | 31.5 ft/100 yards | |
Adjustment Graduation | 1/2 MOA | |
Max Elevation Adjustment | 120 MOA | |
Max Windage Adjustment | 120 MOA | |
Parallax Setting | 100 yards | |
Length | 5.5" | |
Weight | 15.4oz. | |
*Weight includes mount and battery | Dimensions measured in inches. |

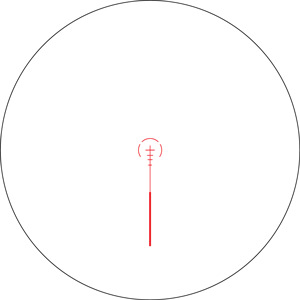

EBR-556B (MOA) RETICLE | |
The EBR-556B reticle (Enhanced Battle Reticle) is designed around the 5.56 x 45 cartridge to aid in rapid shooting at both near and far ranges-providing holdover and ranging references from 0-500 yards. Etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions. |
OPTICAL FEATURES:
- Fully Multi-Coated - Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.
- Prism-Based Design - Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination.
CONSTRUCTION FEATURES
- Single-Piece Chassis - Compact and lightweight.
- Waterproof - O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof - Nitrogen gas purging delivers fogproof, waterproof performance.
- Shockproof - Rugged construction withstands recoil and impact.
- Hard Anodized Finish - Highly durable low-glare matte finish.
- Operating Temperature - Rated from -22 degrees to +122 degrees Fahrenheit.
CONVENIENCE FEATURES
- Variable Mount Heights - Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic center to base surface. Remove the mount riser if a lower 30 mm mounted height is desired.
- Adjustable Brightness - Provides five levels of brightness intensity with red and green illumination settings.
- Red/Green Reticle Option - Allows shooters a choice of dot color.
- Battery Life - Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting.
Manufacturer: Vortex
PRODUCT SPECIFICATIONS:
- Brand: Vortex Optics
- Finish / Color: Black
- Material: Aluminum
- Optics Magnification: 3x
- Sight Style: Reflex
Specifications
- Accessory Attachment Type: Picatinny Rail ,M1913 Rail,Weaver Rail
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 3x
- Optics Objective Size: 38mm
- Sight Style: Red Dot
