Vortex Viper HS LR 6-24x50 FFP Riflescope, XLR MOA Reticle
Product Description
Description: Vortex Viper HS LR 6-24x50 FFP Riflescope, XLR MOA Reticle. This 6-24x power scope with a 50mm objective lens utilizes a 30mm tube constructed from a solid block of aircraft grade aluminum and features a highly durable hard-anodized black matte finish. This rifle scope features extra-low dispersion (XD) lens elements, XR proprietary coatings, and a first focal plane reticle. With ArmorTek coating, the exterior lenses feature extra protection from scratches, oil, and dirt. When it comes to extending your effective shooting range at distances where bullet drop and wind drift are critical, the Viper HS LR riflescope is ideal for long range shooting applications. The capped windage turret maintains the scope's sleek lines and prevent it from hanging up on clothing, rifle cases or pack scabbards.
Viper HS LR riflescopes feature an advanced optical system highlighted with a 6x zoom range for magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Built on an ultra-strong 30mm one-piece machined aluminum tube for increased windage and elevation travel and optimal adjustment.
This scope comes with the following:
- 4-inch sunshade
- Protective lens caps
- Lens cloth
SPECIFICATIONS | VIPER HS LR 6-24X50 FFP DIMENSIONS | ||||||||
Magnification | 6-24x | ||||||||
Objective Lens Diameter | 50mm | ||||||||
Eye Relief | 4.0" | ||||||||
Field of View | 17.8-5.1 ft/100 yards | ||||||||
Tube Size | 30mm | ||||||||
Turret Style | Tactical Elevation Capped Windage CRS Zero Stop |
||||||||
Adjustment Graduation | 1/2 MOA click elevation 1/4 MOA click elevation |
||||||||
Travel per Rotation | 24 MOA elevation 12 MOA windage |
||||||||
Max Elevation Adjustment | 65 MOA | ||||||||
Max Windage Adjustment | 42 MOA | LENGTHS | HEIGHTS | ||||||
Parallax Setting | 50 yards to infinity | L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
Length | 15.5" | 15.5 | 2.5 | 2.2 | 6.0 | 5.8 | 3.6 | 2.26 | 1.63 |
Weight | 22.4oz. | Dimensions measured in inches. |

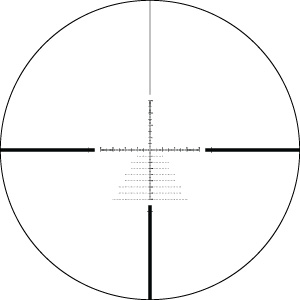

XLR RETICLE (MOA) | |
Hashmarked MOA-based long range reticle with wind drift dots and 1 MOA wind reference subtensions. Good for long range shooters dialing for bullet drop or holding drop while using the reticle. |
OPTICAL FEATURES:
- XD™ Lens Elements - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
- XR™ Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- First Focal Plane Reticle - Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
CONSTRUCTION FEATURES
- Tube Size - 30 mm diameter
- Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof - Rugged construction withstands recoil and impact.
- Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position.
- ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Tactical Elevation Turrets - Exposed elevation turret provides fast, accurate and easily read elevation adjustments. Capped windage turret.
- Side Focus - Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal.
INTERNAL MECHANISM DESIGN FEATURES
- CRS Zero Stop - Customizable Rotational Stop (CRS) aids in return to zero after dialing temporary elevation correction.
- Precision-Force Spring System - Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
- Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
CONVENIENCE FEATURES
- MAG-View Fiber Optic - Provides a highly visible reference point for the magnification setting.
- Radius Bar - Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.
- Fast Focus Eyepiece - Allows quick and easy reticle focusing.
Manufacturer: Vortex
PRODUCT SPECIFICATIONS:
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 6-24x
- Optics Objective Size: 50mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
Specifications
- Brand: Vortex Optics
- Finish / Color: Black
- Firearm Type: Rifle
- Material: Aluminum
- Optics Magnification: 6-24x
- Optics Objective Size: 50mm
- Scope Tube Diameter: 30mm
- Sight Style: Scope
